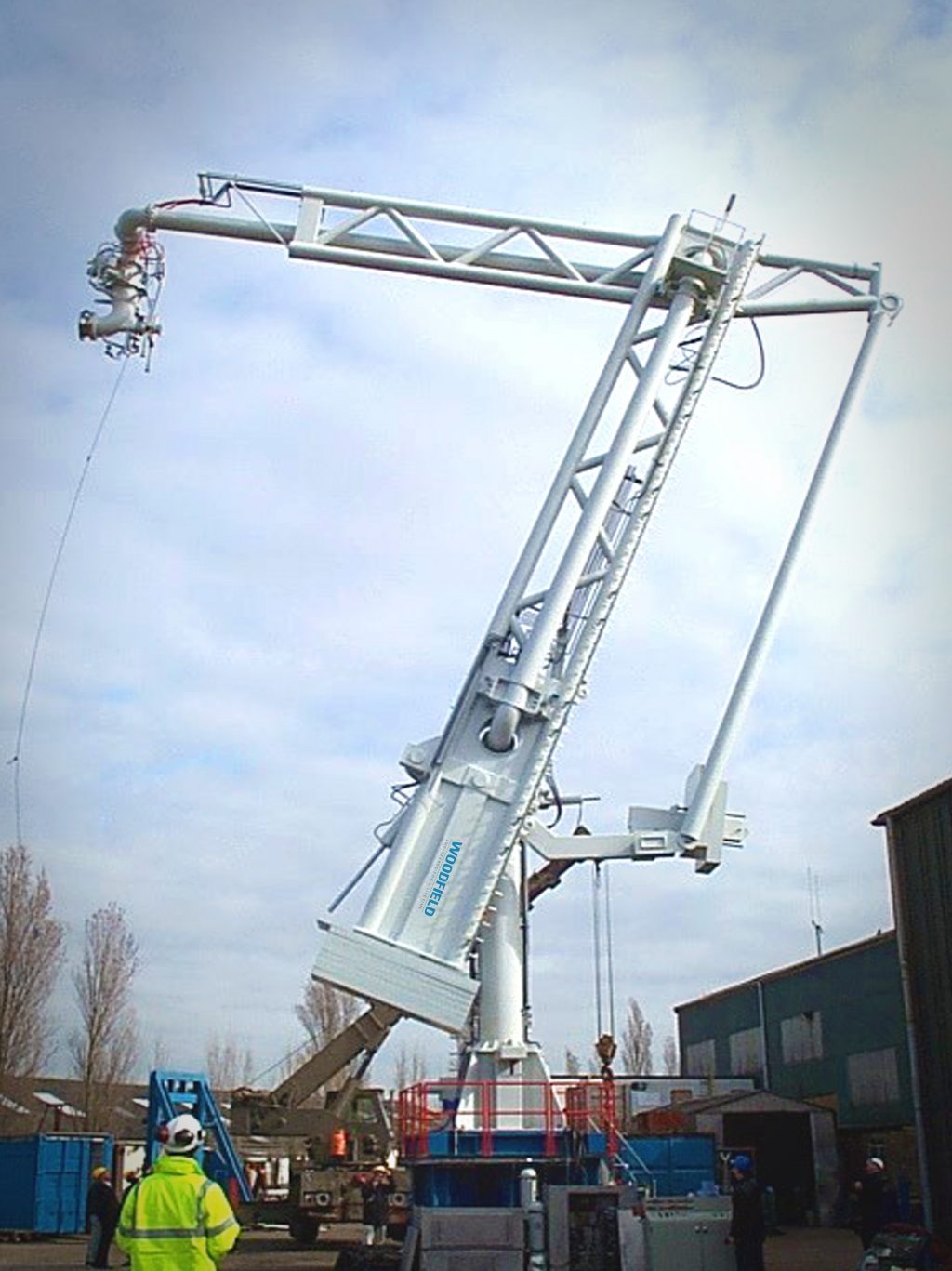

The Woodfield Albatross structurally supported double counterweighted marine loading arm designed around the latest requirements of OCIMF (Design and Construction Specification for Marine Loading Arms), uses a rigid pantograph link system for accurate balance, smooth operation and minimal maintenance.

The Albatross is specifically designed to be used for cryogenic applications along with the additional safety requirements of an emergency Release System. Controlled Electro/hydraulically using either a trailing lead or radio pendant the control system can be custom designed to meet the client’s requirements.

The Albatross is available in sizes from 6” to 16” diameter with pressure ratings up to 300lbs and operating temperatures from -196OC to +200OC.

The following features can be added to this style of marine loading arm

  • Emergency release system (ERS)
  • Manual or hydraulic quick connect disconnect coupler (QC/DC)
  • Ladders and platforms
  • Remote lubrication
  • Range alarm
  • Nitrogen purge
  • Vapour recovery
  • Heat tracing/Insulation
  • Temperature monitoring
  • Constant position monitoring
