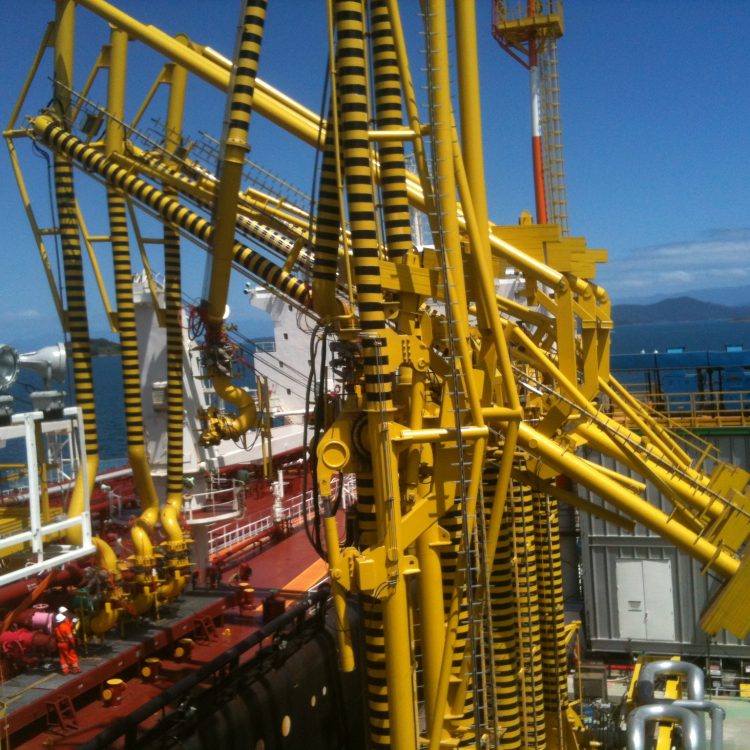

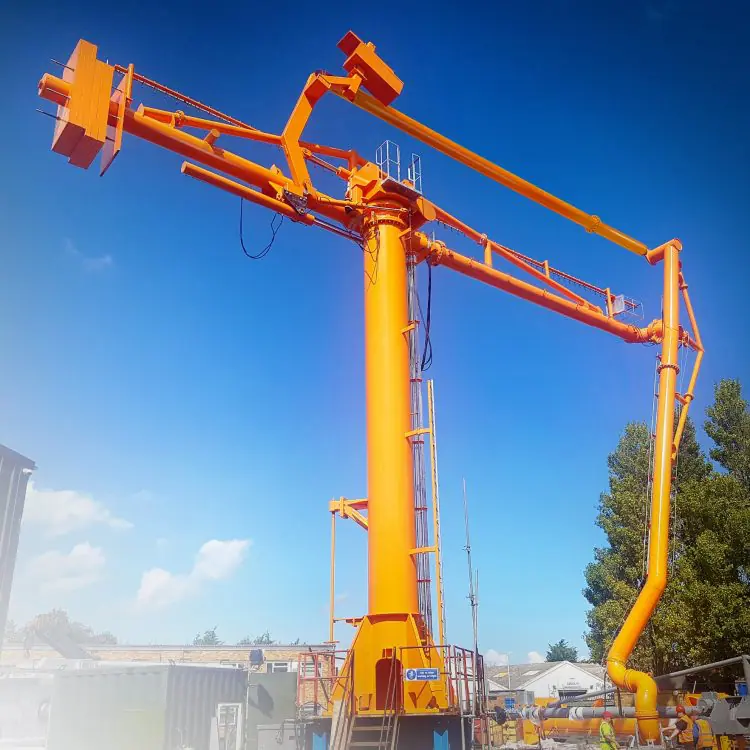

The Woodfield Sea Eagle double counterweighted marine loading arm designed around the latest requirements of OCIMF (Design and Construction Specification for Marine Loading Arms), uses a rigid pantograph link system for accurate balance, smooth operation and minimal maintenance.

The Sea Eagle is specifically designed to be used where additional safety requirements of an emergency Release System is required. Controlled Electro/hydraulically using either a trailing lead or radio pendant the control system can be custom designed to meet the client’s requirements.

The Sea Eagle is available in sizes from 6” to 20” diameter with pressure ratings up to 300lbs and operating temperatures from -50OC to +200OC.

The following features can be added to this style of marine loading arm

  • Emergency Release System (ERS)
  • Manual or hydraulic Quick Connect Disconnect Coupler (QC/DC)
  • Ladders and platforms
  • Remote lubrication
  • Range alarm
  • Nitrogen purge
  • Vapour recovery
  • Heat tracing/Insulation
  • Constant position monitoring
  • Product Stripping System
  • Mobile trailer mounted
